Pro Series
Pro Series
Rental Product
High-end Indoor and outdoor Rental LED Screen - Pro Series

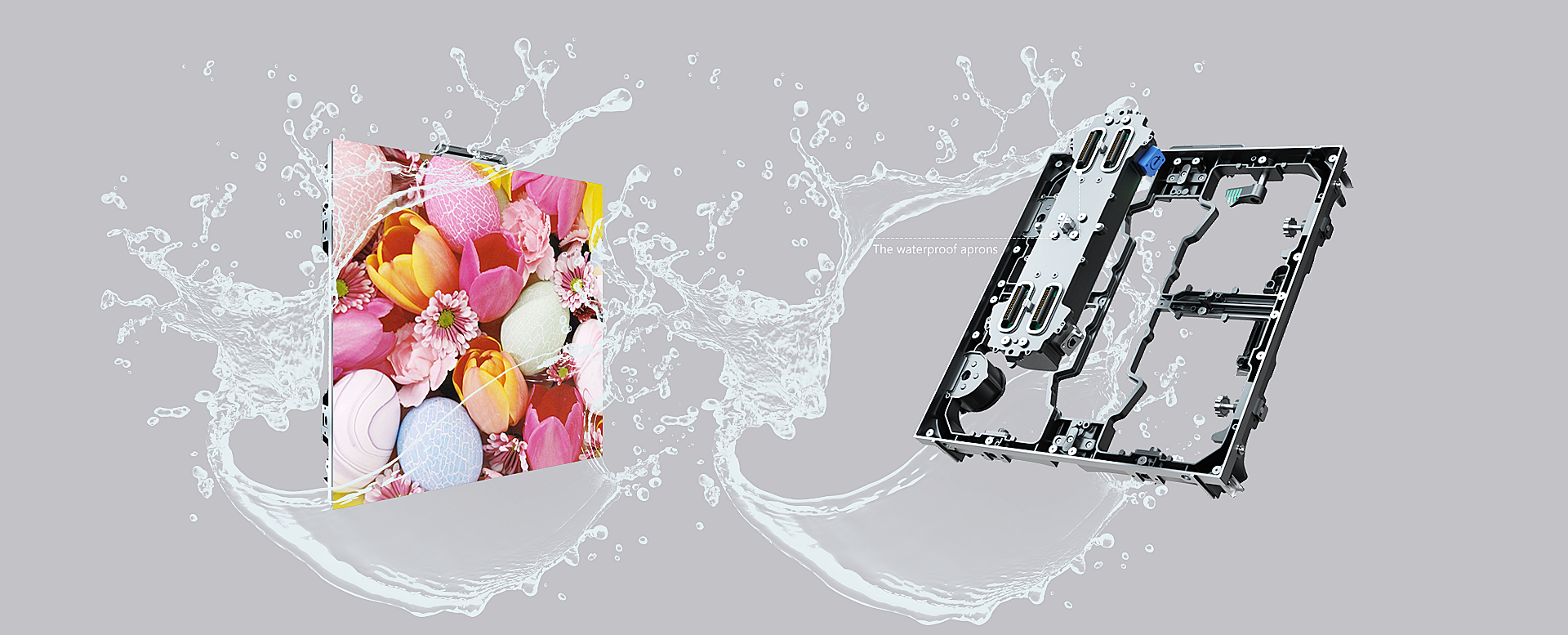

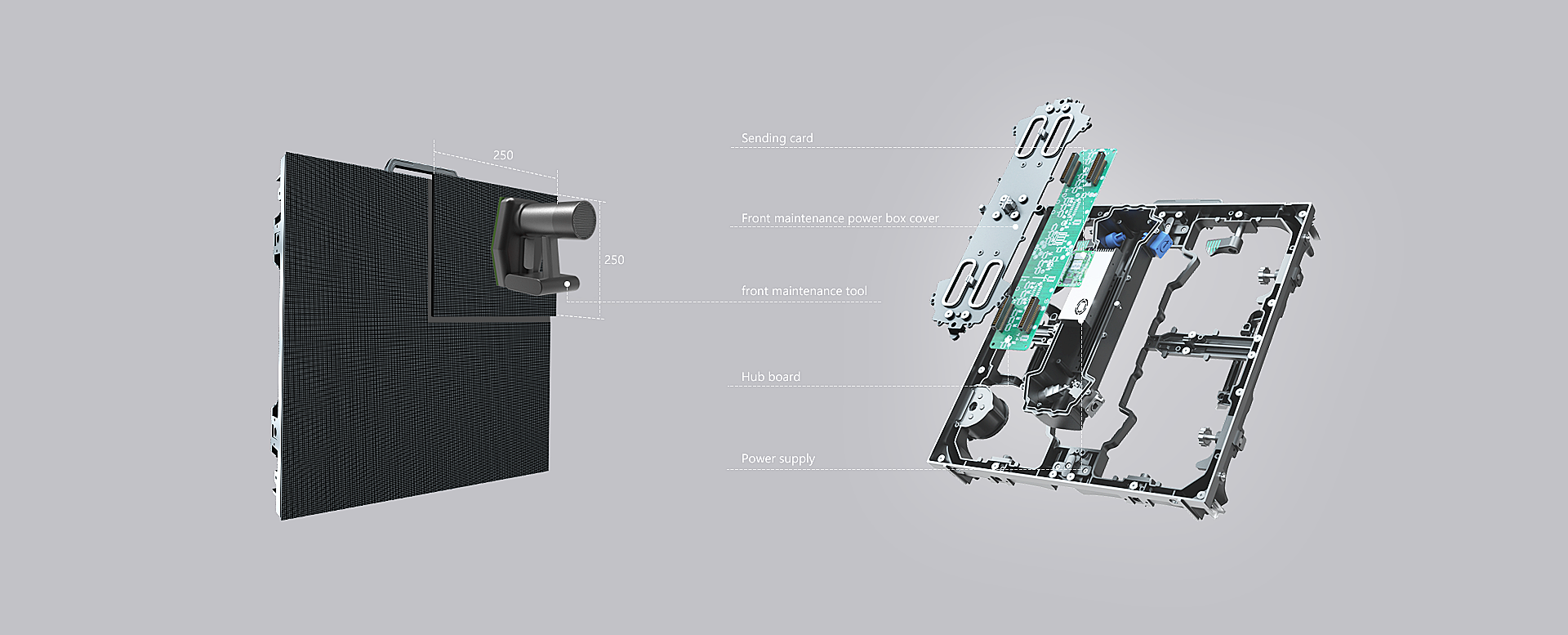

All front maintenance of modules and power cabinet , waterproof grade IP65
High density connection, module front service attraction, full private mode supporting scheme
Patent Structure, Higher Protection

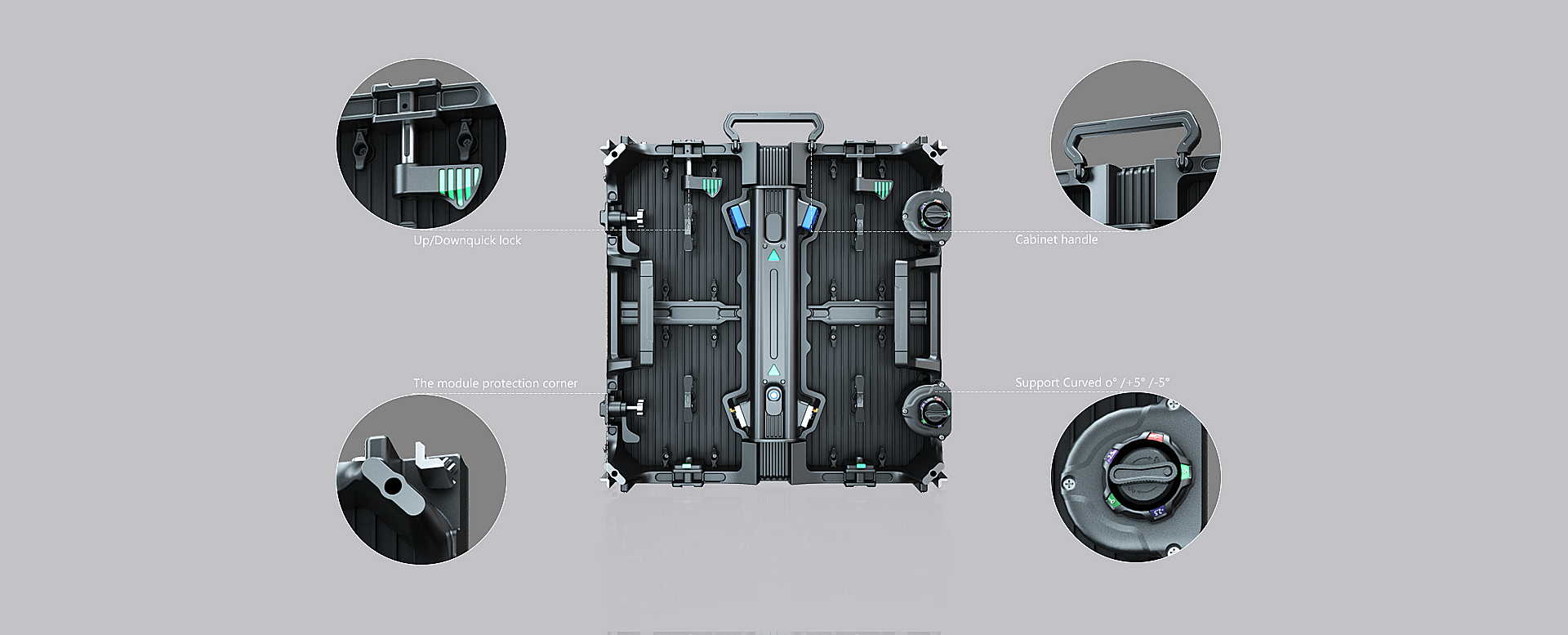

High precision arc lock and corner protector are designed to solve the problem of lamp damage during transportation and installation

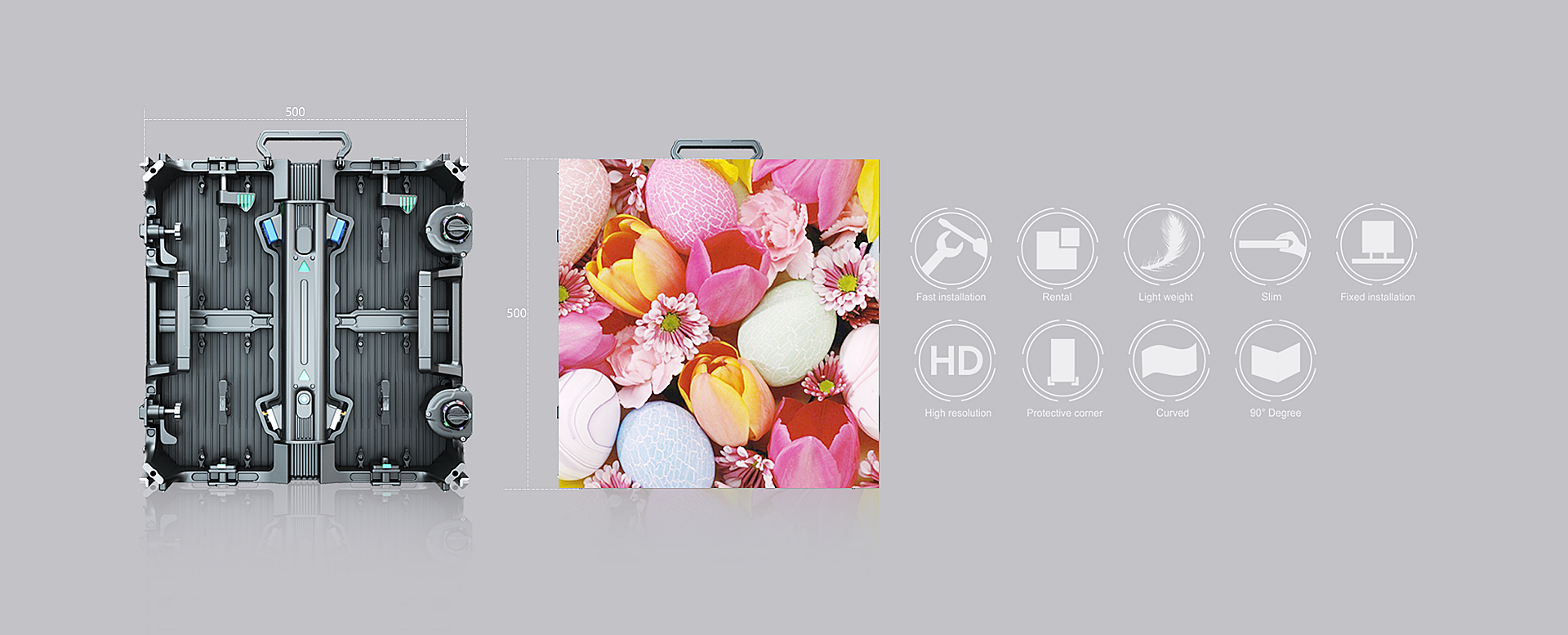

Exquisite appearance design, solid and strong panel

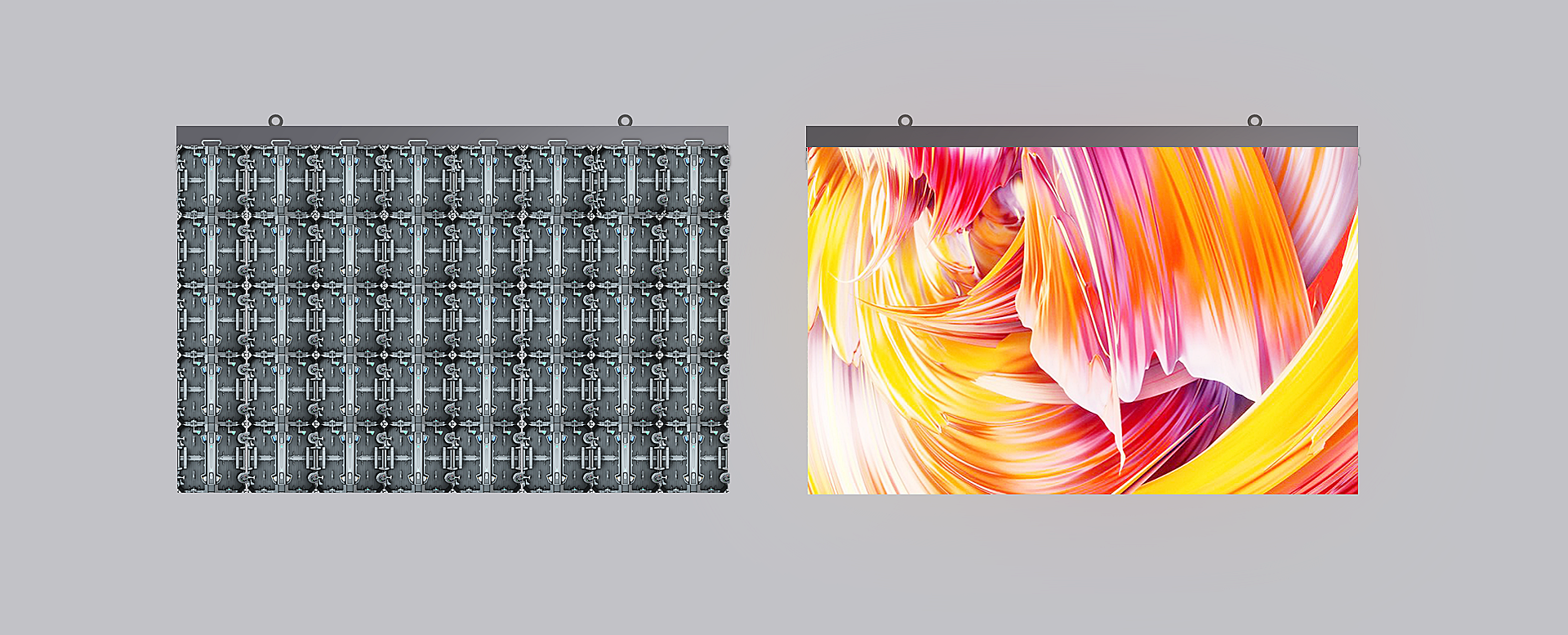

Schematic diagram of cabinet effect
| Indoor | Outdoor | ||||||
| Product | P2.604 | P2.976 | P3.91 | P2.604 | P2.976 | P3.91 | P4.81 |
| Pitch | 2.604mm | 2.976mm | 3.91mm | 2.604mm | 2.976mm | 3.91mm | 4.81mm |
| Density (pixels/m2) | 147456 | 112896 | 65536 | 147456 | 112896 | 65536 | 43264 |
| LED Type | SMD1515 | SMD2121 | SMD2121 | SMD1415 | SMD1921 | SMD1921 | SMD1921 |
| Brightness | 1000nits | 1000 nits | 1200 nits | 5000 nits | 5000 nits | 5000 nits | 5500 nits |
| Scan Method | 1/32 | 1/28 | 1/16 | 1/24 | 1/21 | 1/16 | 1/13 |
| Cabinet Size | 500*500*75mm | 500*500*75mm | |||||
| Module Size | 250*250mm | 250*250mm | |||||
| Cabinet Material | Die-casting Aluminum | Die-casting Aluminum | |||||
| Cabinet Weight | 7.5kg | 8kg | |||||
| Protection Level | IP34 | IP65 | |||||
| Cabinet Maintenance | Front&Rear Service | Front&Rear Service | |||||
| Max Power Consumption | 600 w/m2 | 800 w/m2 | 700 w/m2 | 900w/m2 | 900w/m2 | 900 w/m2 | 900 w/m2 |
| Average Power Consumption | 200 w/m2 | 270 w/m2 | 240 w/m2 | 350w/m2 | 350w/m2 | 350 w/m2 | 350 w/m2 |
| Refresh Rate (Hz) | 2880-3840HZ | ||||||
| Grey Scale | 16 bit | ||||||
| Viewing Angle | H160o,V160° | H160o,V140° | H160o,V160° | H160o,V140° | H140o,V140° | H140o,V140° | |
| Curve (Optional) | -15°~+15° | ||||||
| Voltage | AC100~240V(50-63Hz) | ||||||
| Working Temperature | -30°C-+65°C | ||||||
| Working Humidity | 10%-90%RH | ||||||
| Color Temperature | 6500-9500K | ||||||
| Certifications | EMC/CE/ROHS/CCC/FCC/ISO | ||||||
